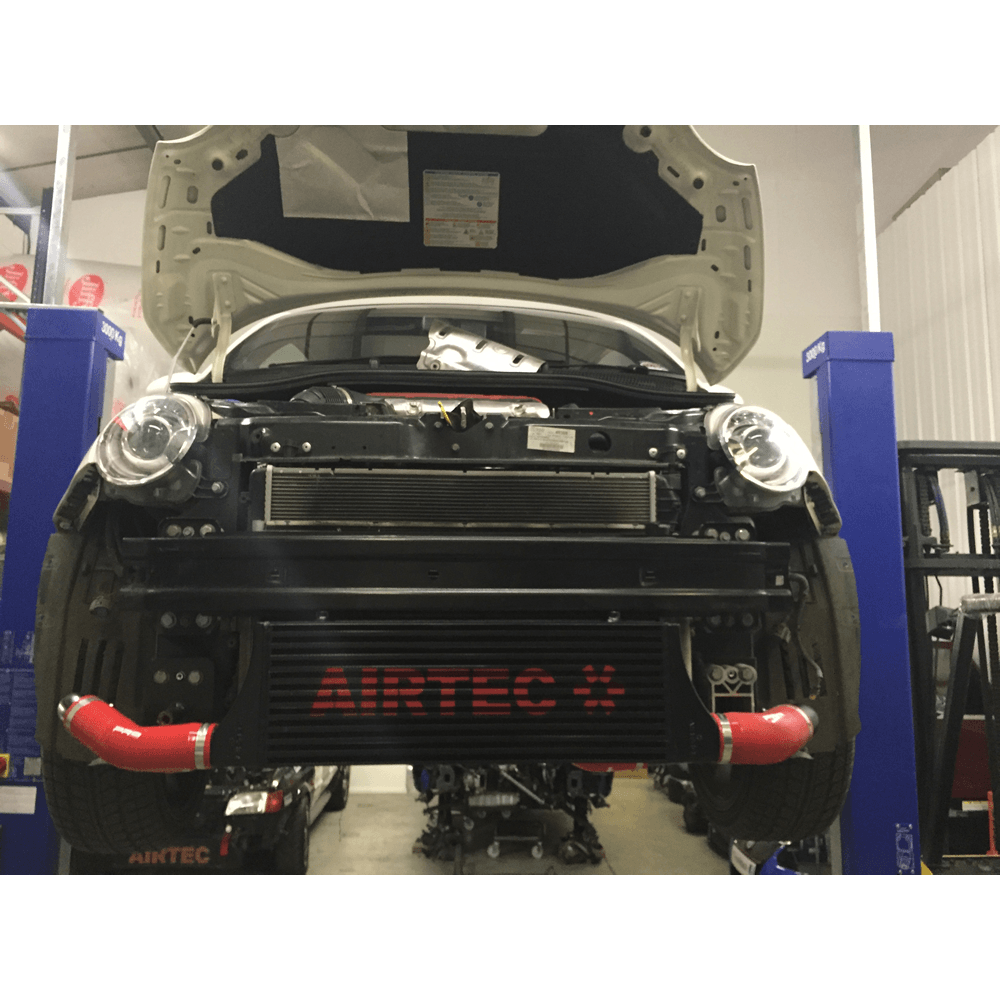

AIRTEC Fiat 500 Abarth 60mm core Intercooler upgrade (Automatic Gearbox)

Code: 403134
£519.75
In Stock
Category: 500, FIAT
Replaces very restrictive twin intercooler setup and lengthily pipe-work, for Airtec's high flow 60mm core intercooler and shortened alloy pipe kit, we keep fast Turbo spool up by using 50mm pipe-work into the turbo and 60mm out of the turbo to help match the throttle body, this combination gives fast turbo spool up and maximum power output

Dyno test results - results taken from Fiat 500 Abarth Auto, with standard map, intercooler & exhaust results from AMD Essex.

  • Run 1.75 degree into the intercooler and 40 degree out of the intercooler - 168 BHP

  • Run 2.73 degree into the intercooler and 42 degree out of the intercooler - 166 BHP


Dyno test results - results taken from Fiat 500 Abarth Auto with AIRTEC FMIC, Miltek turbo back results from AMD Essex.

  • Run 1. 64 degree into the intercooler and 19 degree out of the intercooler

  • Run 2. 67 degree into the intercooler and 20 degree out of the intercooler

  • Run 3. 69 degree into the intercooler and 21 degree out of the intercooler


Features:

  • 60mm thick proven bar and plate core, specced to Airtec design

  • Airtec logo'd Cast end tanks for improved Airflow and un-beatable stength

  • Dyno proven, gain BHP

  • Lower intake temps means safer engines 'FACT'

  • Shorter charge pipes than standard twin intercooler set-up, short pipes mean fast turbo spool up

  • Fitting takes 2-3 hours

  • 3 year un-limited mileage warranty

  • Available in Pro-Series satin Black or Natural Silver

  • Airtec Logo available @ no extra charge

  • Un-beatable value for money


This intercooler will fit with the automatic paddle shift gearbox Fiat 500 Abarth..
